10000PSI Hydraulic Pressure Test Kit - Digital Pressure Gauge with 1.6m Hose & 2 Couplings, 1/4" NPT Connector, 700 BAR/70 MPa, for Excavators and Industrial Applications Mixizap

This kit is an essential tool for pressure measurement, equipment support, calibration, and similar applications. Featuring precise connections, flexible usage, simple operation, and convenient setup, it delivers reliable performance and safety, making it your optimal choice. The gauge features a yellow faceplate, with a hose length of 5.2 feet (1.6 m). One end has an M16*2 female thread, while the other end has a 1/4-inch NPT female thread.✦Specifics Material: Steel, Acrylic, PolyurethanePressure Range: 0-700BAR/10000PS/70MpaConnection: NPT 1/4" maleDisplay Unit: Bar, PSI, MPa, Kgf/cm2.Overload Capacity: <10MPa 150%; >10MPa 120%Accuracy: 0.2%FS (Temperature 20-25℃); 0.4%FS (Temperature -10-50℃)Long-term Stability: 0.2%Fs/year Input Voltage: 3V (2x 1.5V AAA batteries)Sampling Rate: 3 Times/secondScreen Display: 4-digit LCD ScreenWorking Temperature: -20℃-70℃ Compensation Temperature: 0℃-60℃Connector Material: 304 Stainless SteelShell Material: 304 Stainless SteelProtection Class: IP65Thickness: 46mm (1.81 in.)Outline Dimension: 80mm (3.15 in.)Length: 125mm (4.92 in.)Test Hose Length: 5.2FT (1.6m)Function: on/off, zero clearing, units changing, backlight ✦Fit for the Following ModelsReplacement for Excavators✦Exceptional CompatibilitySuitable for excavators and construction machinery from various brands, including most American brands. Widely used in construction, machinery, shipping, chemical, mining, petroleum, and other industries. It measures gases, liquids, oils, and other non-corrosive media in stainless steel materials.✦Package Included1 x Intelligent Digital Pressure Gauge1 x Black Silicone Protector1 x Test Hose 5.2FT/1.6m2 x Test Couplings

• 【Precision Measurement】: Features high-precision piezoresistive pressure sensors and a hardened stainless steel housing for accurate, reliable real-time measurement. Offers outstanding corrosion resistance and impact resistance, suitable for pressure detection and calibration of various non-corrosive gases, liquids, and oils
• 【Wide Compatibility】: Compatible with multiple brands of excavators and construction machinery, particularly compatible with most American-made equipment. Widely used in construction, machinery, marine, chemical, mining, petroleum, and other industries. Features dual M16*2 internal threads and a 1/4-inch NPT internal thread interface for flexible and convenient connection
• 【Smart Gauge】: The digital pressure gauge supports multi-unit switching (BAR, PSI, MPa, Kgf/cm²), featuring backlight display, one-touch zero reset, and unit conversion. Paired with a 5.2-foot (1.6-meter) reinforced test hose, it enables rapid on-site deployment and reading
• 【Industrial-Grade Protection】: The hose features a nylon inner liner, polyurethane outer sheath, and industrial-grade fiber reinforcement for flexibility and abrasion resistance. The gauge's waterproof, dustproof, and shockproof design ensures long-term stable operation in harsh environments

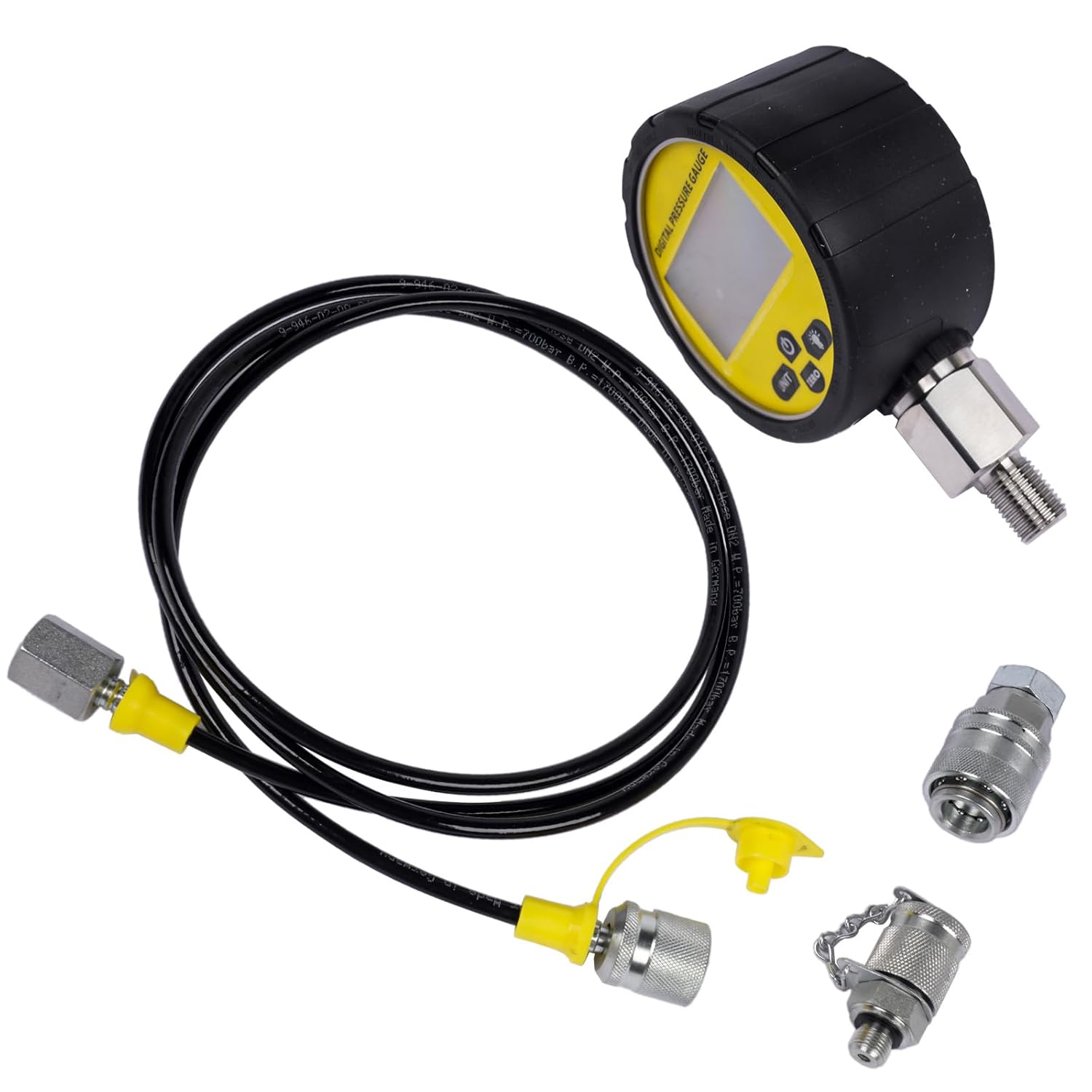

• 【Complete Configuration】: Includes a smart digital pressure gauge, black silicone protective case, test hose, and two test connectors. Provides a comprehensive measurement solution with simple installation, effortlessly handling various pressure testing and calibration tasks
